Direct System Block Ice Machine
Adopts latest refrigeration technology, Focusun block ice machine ensures better refrigerating performance and more environmental ice making process.

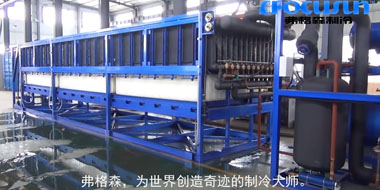

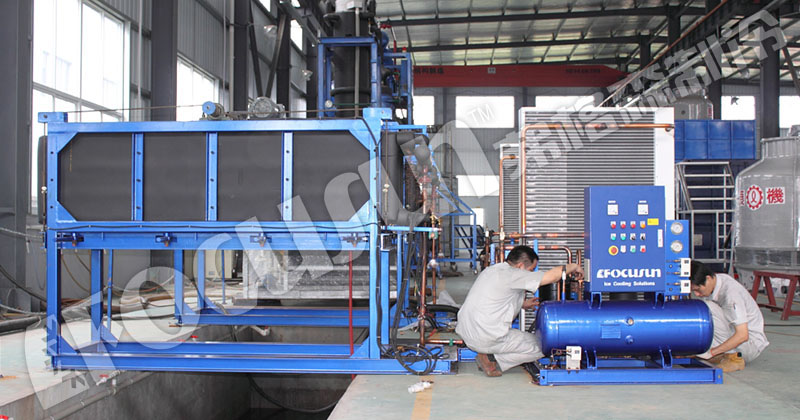

Direct system block ice machines are designed to integrated modular, which,therefore save space and labor costs. The biggest difference to brine system, direct system uses aluminium alloy plates as evaporator which accords with international food sanitation standard. During the ice making process, water will be supplied automatically to ice cans through water feeding pipes, then in the aluminium evaporator happens the direct heat exchange between the water and refrigerant which brings much higher ice making efficiency than ordinary brine refrigeration system.
Direct Refrigeration System Block Ice Machine Models And Specifications | ||||||
---|---|---|---|---|---|---|
Model | Daily Capacity | Operating Weight | Size(L×W×Hmm) | Refrigerant | Max. Ambient Temp. | Supply Water Temp. |
FIB-O5D | 0.5T | 560kg | 1500×800×1800 | R22/R404A | +40℃ | 26℃ |
FIB-10D | 1T | 960kg | 1800×1200×2000 | R22/R404A | ||
FIB-15D | 1.5T | 1260kg | 2800×1200×2000 | R22/R404A | ||
FIB-20D | 2T | 1460kg | 2800×1400×2000 | R22/R404A | ||
FIB-25D | 2.5T | 1660kg | 3200×1400×2000 | R22/R404A | ||
FIB-30D | 3T | 2180kg | 3600×1400×2200 | R22/R404A | ||
FIB-35D | 3.5T | 2100kg | 3600×1650×2000 | R22/R404A | ||
FIB-50D | 5T | Unit: 960kg | 1400×1000×1250 | R22/R404A | ||
Evaporator: 2860kg | 4800×1000×2250 | |||||
Cooling tower:460kg | Φ1380×H2170 | |||||
FIB-100D | 10T | Unit: 1680kg | 1800×1000×1450 | R22/R404A | ||
Evaporator: 2860kg×2(p.c.) | 4800×1000×2250 | |||||
Cooling tower: 670kg | Φ2000×H2410 | |||||
FIB-150D | 15T | Unit: 2160kg | 2000×1200×1600 | R22/R404A | ||
Evaporator: 2860kg×3(p.c.) | 4800×1000×2250 | |||||
Cooling tower: 1120kg | Φ2175×H2565 | |||||
FIB-200D | 20T | Unit: 2896kg | 2400×1600×1800 | R22/R404A | ||
Evaporator: 2860kg×4(p.c.) | 4800×1000×2250 | |||||
Cooling tower: 1300kg | Φ2650×H2645 | |||||
FIB-250D | 25T | Unit: 3260kg | 3200×1800×2200 | R22/R404A | ||
Evaporator: 2860kg×5(p.c.) | 4800×1000×2250 | |||||
Cooling tower: 1630kg | Φ3050×H2780 | |||||
FIB-300D | 30T | Unit: 3500kg | 3000×2000×2200 | R22/R404A | ||
Evaporator: 2860kg×6(p.c.) | 4800×1000×2250 | |||||
Cooling tower: 2730kg | Φ3300×H2785 | |||||
The daily production capacity tested in: dry bulb temperature 33 ℃ and water inlet temperature 25℃. Applicable condition: 45℃ max. ambient temp., inlet water temp.: 0-40℃. Ice degree: -8~-3℃. | ||||||
*The above-mentioned technical parameter will be changed subject to technical innovation without further notice. |
Direct Block Ice Machine Features
- PLC controls the whole ice making process ensuring the whole operation in a safe and stable condition;
- Aluminium alloy plates evaporator extends ice machine’s life span and also meets the international food sanitation standard;
- When the ice making process finished, the ice doffing start automatically which requires no extra manual operation;
- The ice is doffed by batch and the whole process takes only around 25 minutes which guarantees your ice using demand;
- The whole batch of ice can be moved by forklift, improve your working efficiency;
- Daily production capacity from 1 ton to hundreds of tons;

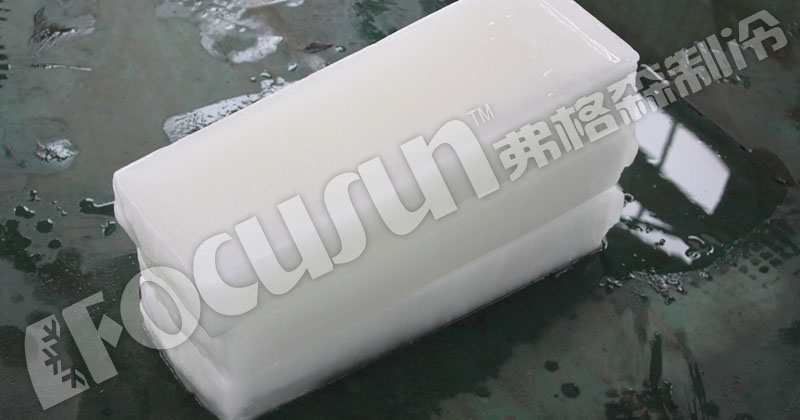

- Ice weight options: 5kg, 10kg, 15kg, 20kg, 25kg, 50kg, etc.;
- The daily capacity of ice machine, ice dimension and ice weight can all be customized;
- Same as Focusun flake ice machines, block ice machines can be installed in the 20 or 40 feet ISO container.
