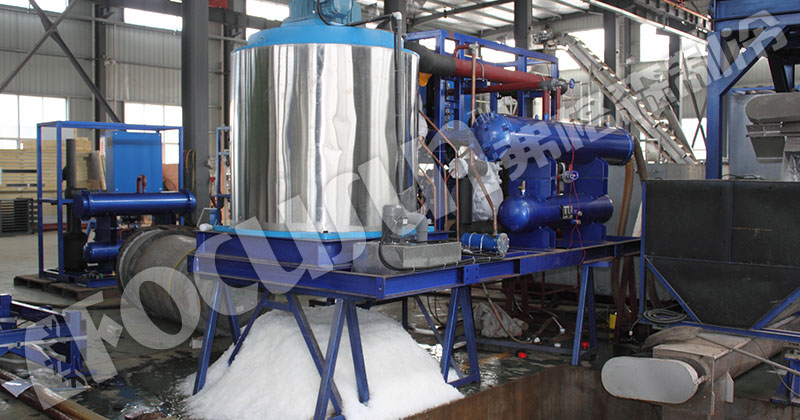

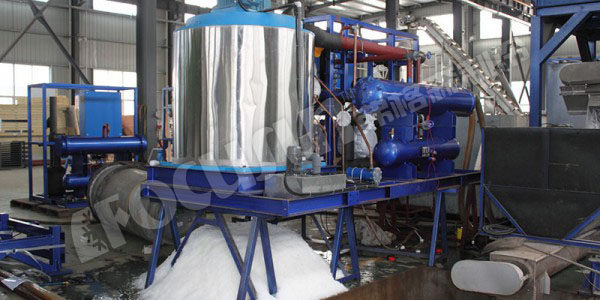

Seawater Flake Ice Machine
Ice flakes benefit a important position in fisheries and seafood preservation, after years of continuous research, Focusun develops specially a new advanced technology to make flake ice for coastal areas where provide us rich seawater as raw material.
Focusun seawater flake ice machine is designed for large ocean-going fishing industry which could overcome the corrosion of seawater, pitching and swing problems of vessels.
In addition, in order to suit the different using places, Focusun designs two types of seawater flake ice making machine: land using seawater flake ice machine and marine using seawater flake ice machine.
Various options for daily capacity from 0.5T to 60T.
Seawater Flake Ice Machine Features
- Using seawater as inlet water, greatly facilitate the marine operation in coastal areas.
- Adopts totally stainless steel and antisepsis aliminium alloy, high quality material and components applied to protect the whole equipment from seawater corrosion.
- All parts of flake ice making machine are installed in one set ensures a easy operation and maintain, more space-saving.
- Bizter deepened oil tank and marine seawater condenser guarantee a smooth operation even in worst condition.
Seawater Flake Ice Machine Models And Specifications | |||||
---|---|---|---|---|---|
Model | Daily Capacity | Operating Weight | Size(L×W×Hmm) | Refrigerant | Electric Consumption |
FIF-50WB | 5T | 1120kg | 2200×1050×1550 | R404A | 21.8kw |
FIF-60WB | 6T | 1600KG | 2150×1350×1580 | R404A | 22kw |
FIF-80WB | 8T | 1800kg | 2450×1650×1600 | R404A | 26kw |
FIF-100WB | 10T | 3000kg | 3550×1550×2100 | R404A | 34.3kw |
FIF-150WB | 15T | 3400kg | 4000×1850×2400 | R404A | 49.35kw |
FIF-200WB | 20T | 3600kg | 4200×2000×2914 | R404A | 68.40kw |
FIF-05 | 0.5T | 530kg | 1100×700×630 | R404A | 2.5kw |
FIF-08 | 0.8T | 560kg | 1200×740×650 | R404A | 3.67kw |
FIF-10 | 1T | 620kg | 1200×740×800 | R404A | 4.3kw |
FIF-20 | 2T | 680kg | 1560×1200×960 | R404A | 7.15kw |
FIF-30 | 3T | 720kg | 1700×900×1200 | R404A | 11.3kw |
FIF-40 | 4T | 780kg | 1700×900×1400 | R404A | 14.94kw |
FIF-50 | 5T | 860kg | 2200×1050×1550 | R404A | 17.28kw |
FIF-60 | 6T | 950kg | 2200×1050×1750 | R404A | 21.24kw |
The daily production capacity tested in: dry bulb temperature 33 ℃ and water inlet temperature 25℃. Applicable condition: 45℃ max. ambient temp., inlet water temp.: 0-40℃. Model FIF-WB is our land using seawater flake ice machine. | |||||
*The above-mentioned technical parameter will be changed subject to technical innovation without further notice. |
