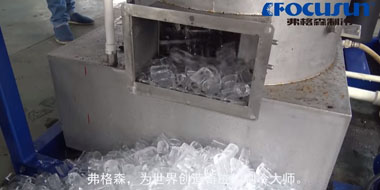

Tube Ice Machine
Focusun is preciously proud of the invention of the first global food type tube ice machine. Over 80 years’ rich manufacturing experience perfects our manufacturing technology.
Classified by daily production capacity, Focusun designs and manufactures tube ice machine in different way. For small capacity tube ice machine, a complete unit with all equipment assembled in a steel frame except the cooling tower for water-cooling or air fan for air-cooling. For large capacity tube ice machine, Focusun adopts a modular design which includes 3 parts: evaporator module, compressor module and electrical module.
Among the 6 types of ice, tube ice has the highest density which is transparent, sanitary, difficult to melt and completely edible for daily life.
Tube Ice Machine Models And Specifications | ||||||||
---|---|---|---|---|---|---|---|---|
Model | Daily Capacity | Operating Weight | Size(L×W×Hmm) | Refrigerant | Ambient Temp. | Supply Water Temp. | Condensor | Current |
FIT-10 | 1T | 890kg | 1400×1000×1250 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
FIT-30 | 3T | 1250kg | 4800×1000×2250 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
FIT-50 | 5T | 1650kg | Φ1380×H2170 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
FIT-60 | 6T | 1650kg | 1800×1000×1450 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
FIT-80 | 8T | 1650kg | 4800×1000×2250 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
FIT-100 | 10T | Unit: 1560kg | 1800×1500×1600 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
Evaporator: 2296kg | 1180×1180×3500 | |||||||
Cooling tower: 670kg | Φ2000×H2410 | |||||||
FIT-150 | 15T | Unit: 1890kg | 2000×1800×1600 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
Evaporator: 2685kg | 1250×1250×4200 | |||||||
Cooling tower: 1120kg | Φ2175×H2565 | |||||||
FIT-200 | 20T | Unit: 2260kg | 2200×2000×1800 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
Evaporator: 3650kg | 1350×1350×4600 | |||||||
Cooling tower: 1120kg | Φ2175×H2565 | |||||||
FIT-250 | 25T | Unit: 2680kg | 2400×2200×2000 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
Evaporator: 4260kg | 1450×1450×4800 | |||||||
Cooling tower: 1300kg | Φ2650×H2645mm | |||||||
FIT-300 | 30T | Unit: 3280kg | 2800×2200×2000 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
Evaporator: 4860kg | 1450×1450×5200 | |||||||
Cooling tower: 1630kg | Φ3050×H2780 | |||||||
FIT-350 | 35T | Unit: 3860kg | 3500×2200×2000 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
Evaporator: 5650kg | 1500×1500×5500 | |||||||
Cooling tower: 2730kg | Φ3770×H3490 | |||||||
FIT-400 | 40T | Unit: 4250kg | 3600×2200×2000 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
Evaporator: 5890kg | 1500×1500×5800 | |||||||
Cooling tower: 2730kg | Φ3770×H3490 | |||||||
FIT-500 | 50T | Unit: 4560kg | 4300×2200×2000 | R22/R404A | -20~+50℃ | +0.5~+45℃ | Air/Water/ Evaporative Cooling | 50hz/60hz, 220V/380V/440/, 3P |
Evaporator: 6500kg | 1800×1800×6000 | |||||||
Cooling tower: 3770kg | Φ3770×H3690 | |||||||
The dimensions and color of tube ice can be customized. Compressor brands are optional. | ||||||||
*The above-mentioned technical parameter will be changed subject to technical innovation without further notice. |
Tube Ice Machine Features
- Multiple color options for tube ice.
- Pure German technology and years’ research experience in refrigeration;
- Original Pre-PurifyTM patented technology makes ice crystal;
- Evaporator adopts SUS304, PE, and aluminium material, meets HACCP and FDA cleanliness standards;
- PLC system controls the ice making process automatically, no extra manual costs;
- Options for tube ice dimension: outside diameter: 22mm, 29mm, 32mm, 35.
- Focusun offer you 3 types ice packing machine for tube ice: semi-automatic ice packer, full-automatic ice packer and the ice packer comes with the ice machine.
- With our ice compactor, the tube ice can be turned into another ice: block ice.
