Containerized Products
In order to satisfy the demand for ice of our customers in different conditions, Focusun lanced a new series products, containerized type ice machines and cold room. Containerized product is an all-in-one refrigeration system that facilitates the installation, transportation, operation and maintenance.

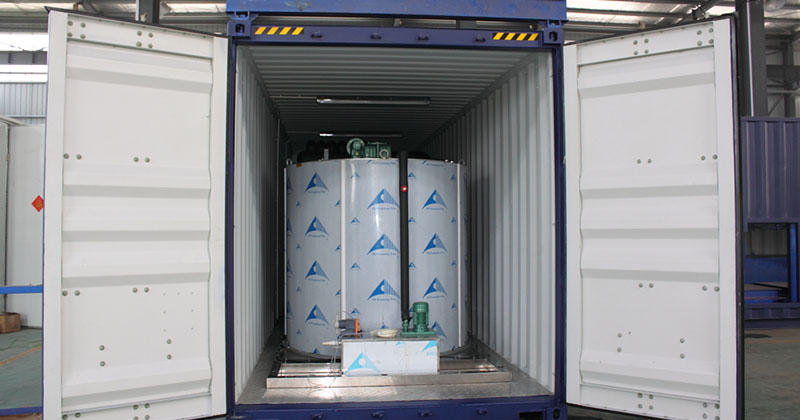

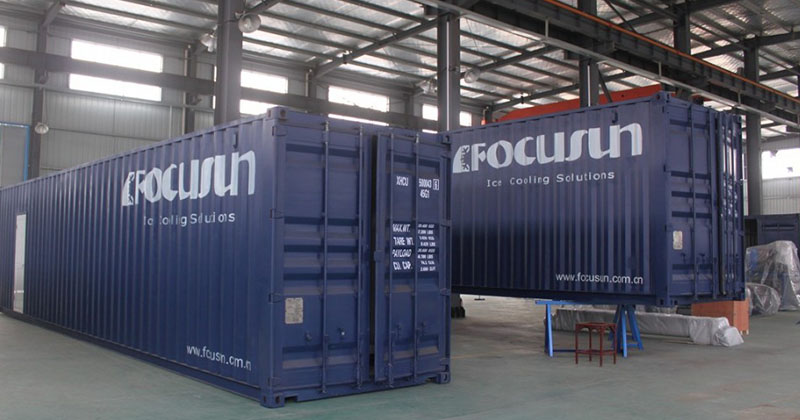

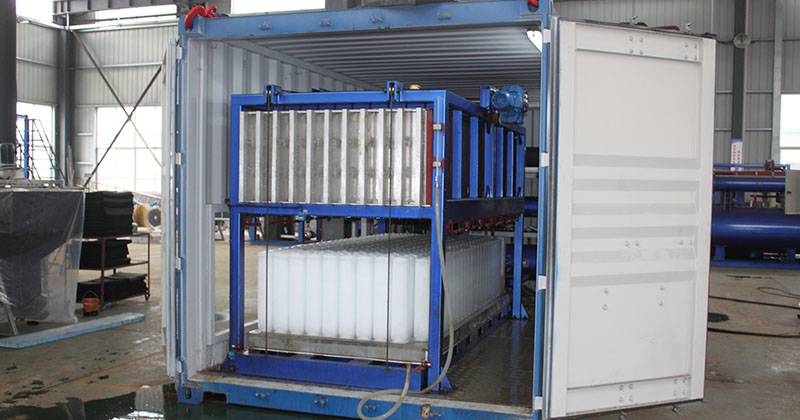

Focusun can install block ice machine, flake ice machine, water chiller and cold room into a ISO standard 20 or 40 feet container. The whole ice making system including refrigeration system, condensing system, ice doffing system is installed. These containers can be used as small ice factories but no need to build a room for it. All of our containerized machines can be used smoothly in most tough outdoor environment.
Why choose containerized?
- Pre-assembled and well-tested ice plants installed in 20ft or 40ft containers are ready for connection to water and electricity.
- All equipment installed in the container. Thus it prevents the ice plant from getting damaged during the long-distance transportation.
- Fully automatic ice making and delivery. Saving labor cost and operation cost.
- Simple maintenance, no need for professionals. Guarantee a long service life.
- Container is equipped with lighting and drainage system, totally produce ice during 24H.
- For containerized block ice machine, Focusun offers a range of capacities from 1 ton to 18 tons.
- For containerized flake ice machine, the max. capacity is 60 tons/day. The daily capacity of water chiller can up to 180 tons maximum.
- For cold room, Focusun offers customized service, so please clear your detailed requirements with our salesman.
Containerized Block Ice Machine Models And Specifications | ||||||
---|---|---|---|---|---|---|
Model | Daily Capacity | Operating Weight | Size(L×W×Hmm) | Refrigerant | Electric Consumption | |
20 feet container | FIB-10DC | 1T | 960kg | 6065×2438×2591 | R22/R404A | 6.0kw |
FIB-30DC | 3T | 2180kg | 6065×2438×2591 | R22/R404A | 14.0kw | |
FIB-50DC | 5T | 3820kg | 6065×2438×2591 | R22/R404A | 20.9kw | |
FIB-10BC | 1T | 960kg | 6065×2438×2591 | R22/R404A | 6.0kw | |
FIB-30BC | 3T | 2180kg | 6065×2438×2591 | R22/R404A | 14.0kw | |
FIB-50BC | 5T | 3820kg | 6065×2438×2591 | R22/R404A | 20.9kw | |
40 feet container | FIB-100DC | 10T | 7400kg | 12192×2438×2895 | R22/R404A | 33.9kw |
FIB-150DC | 15T | 10740kg | 12192×2438×2895 | R22/R404A | 52.40kw | |
FIB-180DC | 18T | 12000kg | 12192×2438×2895 | R22/R404A | 55.1kw | |
FIB-80BC | 8T | 5600kg | 12192×2438×2895 | R22/R404A | 30.79kw | |
FIB-100BC | 10T | 7400kg | 12192×2438×2895 | R22/R404A | 33.98kw | |
FIB-125BC | 12.5T | 8500kg | 12192×2438×2895 | R22/R404A | 36.0kw | |
The daily production capacity tested in: dry bulb temperature 33 ℃ and water inlet temperature 25℃. Applicable condition: 45℃ max. ambient temp., inlet water temp.: 0-40℃. Model FIB--DC is our direct system block ice machine, and FIB--BC is our brine system block ice machine. | ||||||
*The above-mentioned technical parameter will be changed subject to technical innovation without further notice. |
Containerized Flake Ice Machine Models And Specifications | ||||||
---|---|---|---|---|---|---|
Model | Daily Capacity | Operating Weight | Size(L×W×Hmm) | Refrigerant | Electric Consumption | |
20 feet container | FIF-50C | 5T | 3600kg | 6065×2438×2591 | R22/R404A | 17.72kw |
FIF-100C | 10T | 4700kg | 6065×2438×2591 | R22/R404A | 34.3kw | |
FIF-120C | 12T | 5300kg | 6065×2438×2591 | R22/R404A | 38.8kw | |
FIF-150C | 15T | 5500kg | 6065×2438×2591 | R22/R404A | 49.35kw | |
FIF-200C | 20T | 6100kg | 6065×2438×2591 | R22/R404A | 60.41kw | |
40 feet container | FIF-250C | 25T | 6500kg | 12192×2438×2895 | R22/R404A | 78.85kw |
FIF-300C | 30T | 6800kg | 12192×2438×2895 | R22/R404A | 102.45kw | |
FIF-400C | 40T | 8000kg | 12192×2438×2895 | R22/R404A | 147.35kw | |
FIF-500C | 50T | 8500kg | 12192×2438×2895 | R22/R404A | 176.3kw | |
FIF-600C | 60T | 9200kg | 12192×2438×2895 | R22/R404A | 204.9kw | |
The daily production capacity tested in: dry bulb temperature 33 ℃ and water inlet temperature 25℃. Applicable condition: 45℃ max. ambient temp., inlet water temp.: 0-40℃. | ||||||
*The above-mentioned technical parameter will be changed subject to technical innovation without further notice. |
Please feel free to Contact Us for more details about Focusun containerized type products.
