Fresh Water Flake Ice Machine
- Customized service.
- Energy saving
- PLC controls whole ice making process with clear touch screen.
- High quality carefully selected compressor brands: Maneurop, Tecumseh and Bitzer.

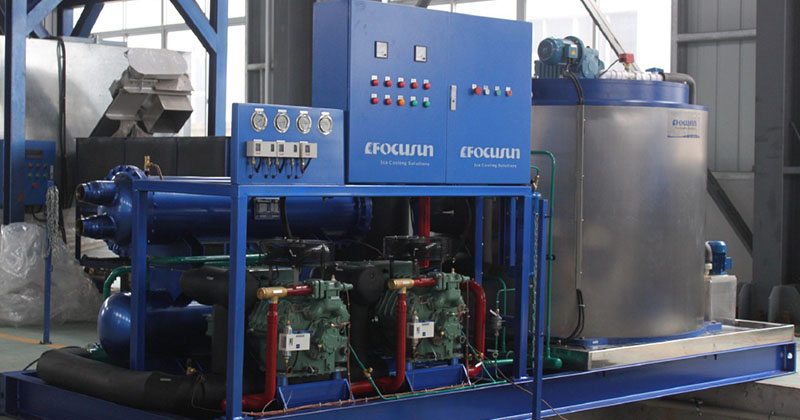

Focusun designs and manufactures fresh water flake ice machines with daily production capacity from 500kg to 100 tons per unit.
Integrated modular design makes it possible to install the machine into a 20 feet or 40 feet ISO container which is very easy to transfer.

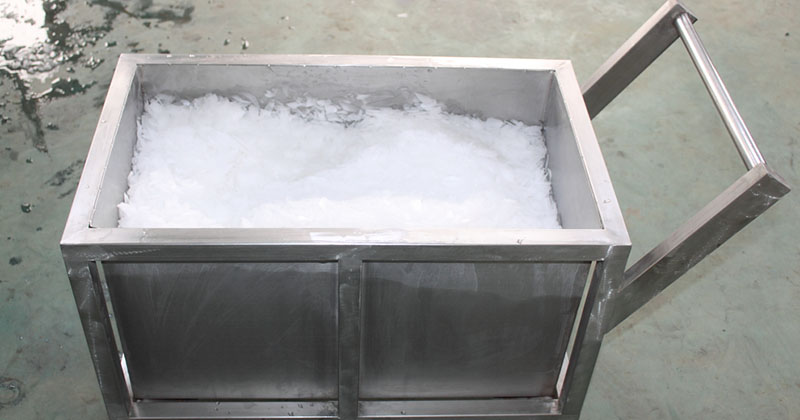

All flake ice machines can be equipped with a ice storage room which stores directly ice flakes during the ice making process for later using. Focusun adopts advanced ice conveying system, screw ice conveyor, greatly improves the conveying efficiency and capacity.
Customized service
- Variety of compressor brands: Bitzer, Maneurop, Tecumseh, Copeland and BOCK, etc.
- According to the different local conditions, our machines are designed to fit with water-cooled and air-cooled condenser.
- Our machines are suitable for refrigerants R22 and R404A.
- Flake ice plants can be installed directly in a 20 feet or 40 feet container.
- Ice storage/Cold room with different storage volume for your selection.
Small Capacity Fresh Water Flake Ice Machine Models And Specifications | ||||||
---|---|---|---|---|---|---|
Model | Daily Capacity | Operating Weight | Size(L×W×Hmm) | Refrigerant | Electric Consumption | Install Power |
FIF-05A | 0.5T | 208kg | 1200×740×590 | R22/R404A | 2.56kw | 2.2kw |
FIF-08A | 0.8T | 235kg | 1200×740×650 | R22/R404A | 4.43kw | 2.8kw |
FIF-10A | 1T | 380kg | 1200×740×780 | R22/R404A | 5.16kw | 4.2kw |
FIF-12A | 1.2T | 420kg | 1400×960×780 | R22/R404A | 6.63kw | 4.5kw |
FIF-15A | 1.5T | 450kg | 1560×1200×880 | R22/R404A | 7.72kw | 5kw |
FIF-20A | 2T | 480kg | 1560×1200×960 | R22/R404A | 11.17kw | 6.5kw |
FIF-25A | 2.5T | 550kg | 1560×1200×1150 | R22/R404A | 12.62kw | 8kw |
FIF-30A | 3T | 580kg | 1560×1200×1150 | R22/R404A | 14.35kw | 10kw |
The daily production capacity tested in: dry bulb temperature 33 ℃ and water inlet temperature 25℃. | ||||||
*The above-mentioned technical parameter will be changed subject to technical innovation without further notice. |
Medium and Large Capacity Fresh Water Flake Ice Machine Models And Specifications | ||||||
---|---|---|---|---|---|---|
Model | Daily Capacity | Operating Weight | Size(L×W×Hmm) | Refrigerant | Electric Consumption | Install Power |
FIF-50 | 5T | 1250kg | 2200×1050×1550 | R22/R404A | 17.72kw | 22kw |
FIF-80 | 8T | 1800kg | 3400×1550×1800 | R22/R404A | 25.55kw | 30kw |
FIF-100 | 10T | 2200kg | 3550×1550×2100 | R22/R404A | 34.31kw | 42kw |
FIF-120 | 12T | 3000kg | 3720×1650×2050 | R22/R404A | 38.38kw | 50kw |
FIF-150 | 15T | 3200kg | 4000×1850×2400 | R22/R404A | 49.35kw | 60kw |
FIF-200 | 20T | 3600kg | 4200×2000×2914 | R22/R404A | 60.40kw | 80kw |
FIF-250 | 25T | Unit: 2500kg | 2500×2000×2000 | R22/R404A | 78.85kw | 100kw |
Evaporator: 3000kg | 2050×1660×2450 | |||||
FIF-300 | 30T | Unit: 2800kg | 2800×2200×2200 | R22/R404A | 102.45kw | 125kw |
Evaporator: 4500kg | 2400×2000×3000 | |||||
FIF-350 | 35T | Unit: 2800kg | 2800×2200×2200 | R22/R404A | 115.35kw | 140kw |
Evaporator: 4600kg | 2400×2000×3200 | |||||
FIF-400 | 40T | Unit: 3000kg | 2800×2400×2200 | R22/R404A | 147.35kw | 180kw |
Evaporator: 5500kg | 2800×2400×3600 | |||||
FIF-500 | 50T | Unit: 3200kg | 3200×2400×2200 | R22/R404A | 176.3kw | 220kw |
Evaporator: 6500kg | 3000×2500×4500 | |||||
FIF-600 | 60T | Unit: 4500kg | 3400×2400×2200 | R22/R404A | 214.9kw | 280kw |
Evaporator: 6500kg | 3000×2500×4500 | |||||
The daily production capacity tested in: dry bulb temperature 33 ℃ and water inlet temperature 25℃. Applicable condition: 45℃ max. ambient temp., inlet water temp.: 0-40℃. | ||||||
*The above-mentioned technical parameter will be changed subject to technical innovation without further notice. |
Contact Us for more details about Focusun fresh water flake ice machine.
